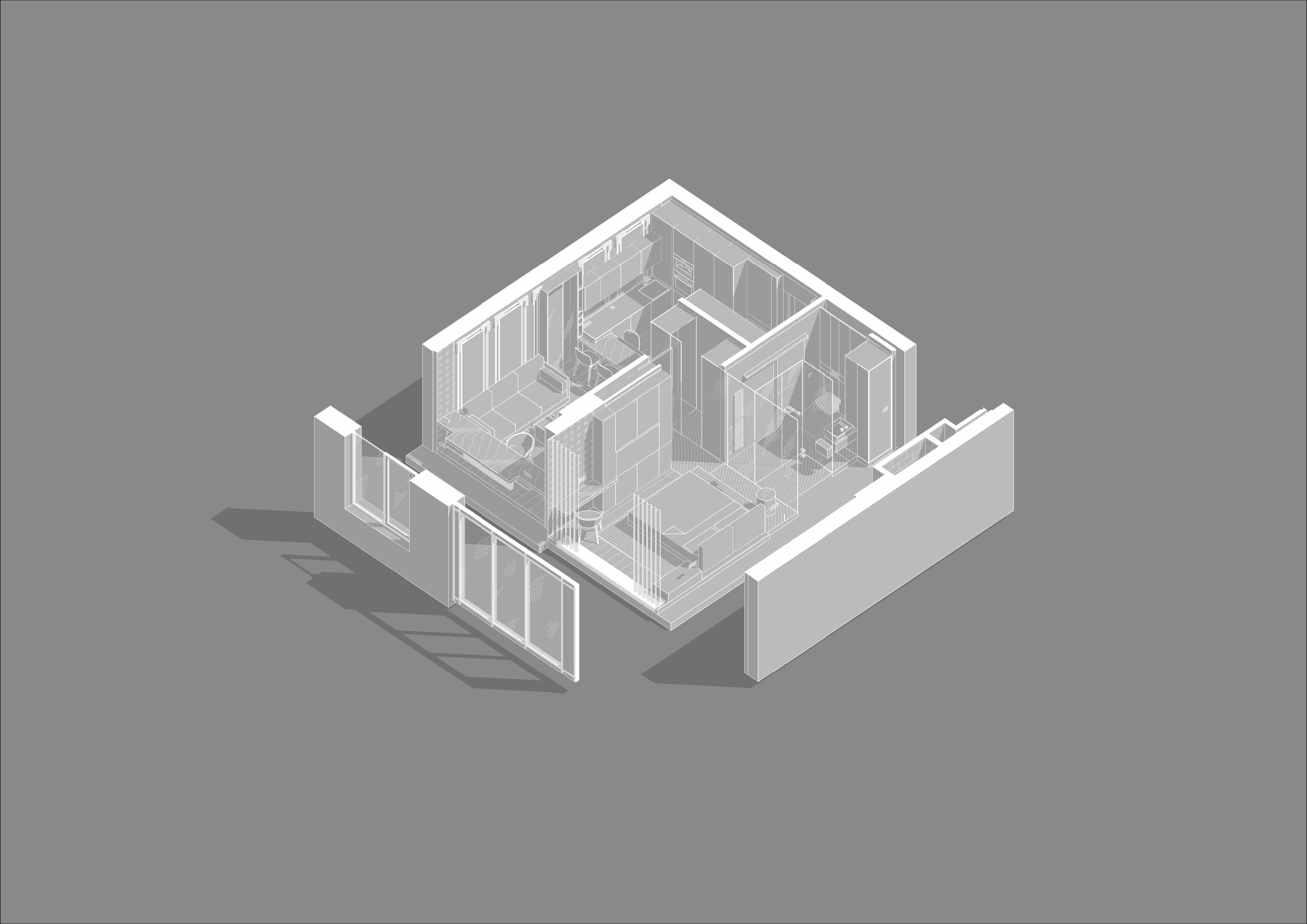

Apartment 45 sqm Interior Design Project Drawings in Revit

This is a complete drawing project of interior design for an apartment of 45 sqm developed in revit 2024 version. The project (rvt) includes all families presented in the drawings as well as set template sheets for drawings of interior design. Language of the project is in Russian. Families and set drawings could be used to develop your own projects. The following is the set of drawings included in the project (to see the full project drawings in pdf click the link):

1.General Data

2.Explanatory Note

3.Measurement Plan

4.Demolition Plan

5.Installation Plan of Partitions, Stage 1

6.Installation Plan of Gypsum Board Structures, Stage 2

6.1.Installation Plan of Beams and Details

7Measurement Plan after Installation

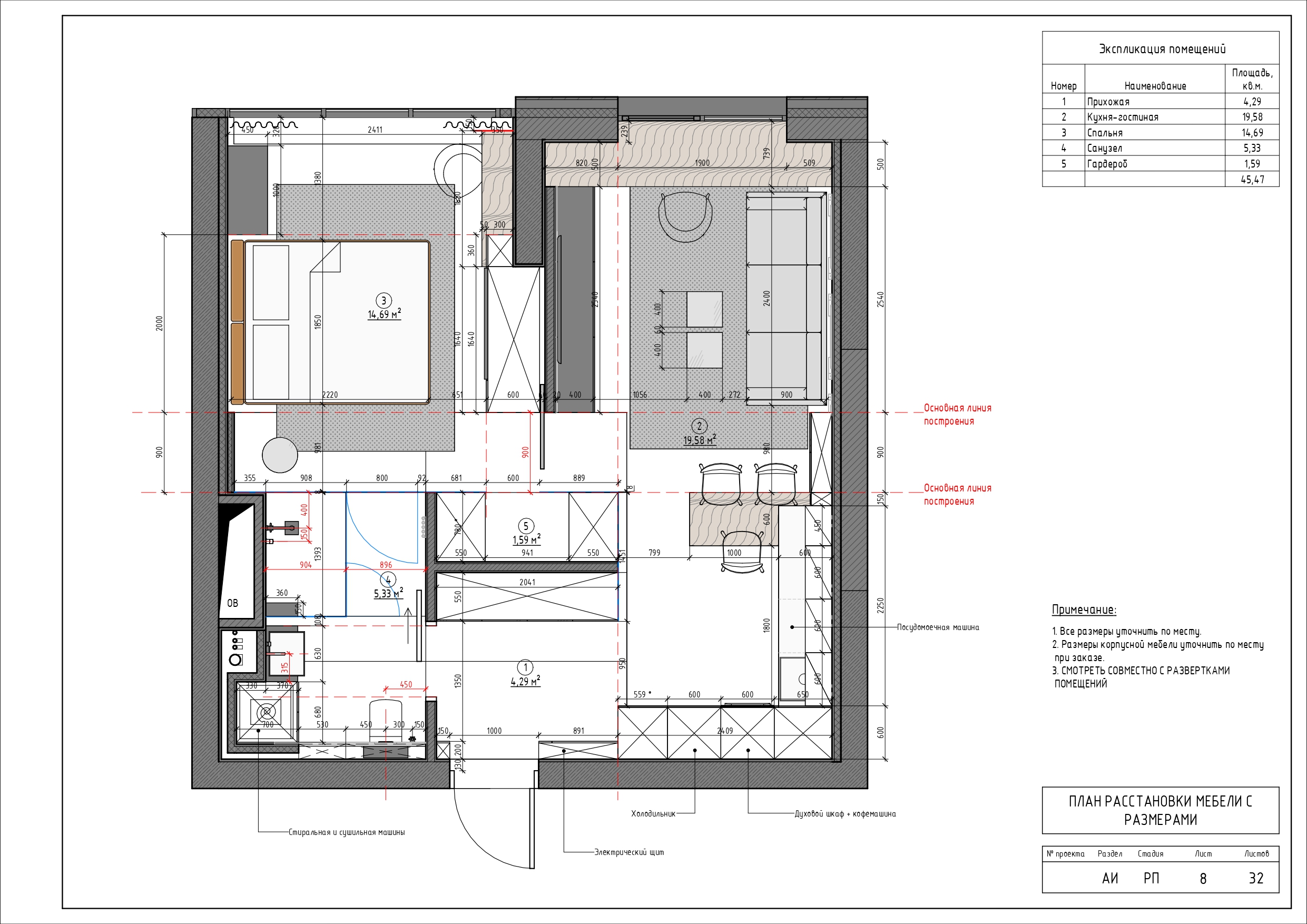

8.Furniture Layout Plan with Dimensions

9.Furniture Layout Plan

10.Wall Openings Plan

11.Communications Layout Plan

12.Plumbing Equipment Layout and Specifications

13.Radiators Plan

14.Flooring Plan

15.Heating Floor Layout Plan

16.Ceiling Layout Plan

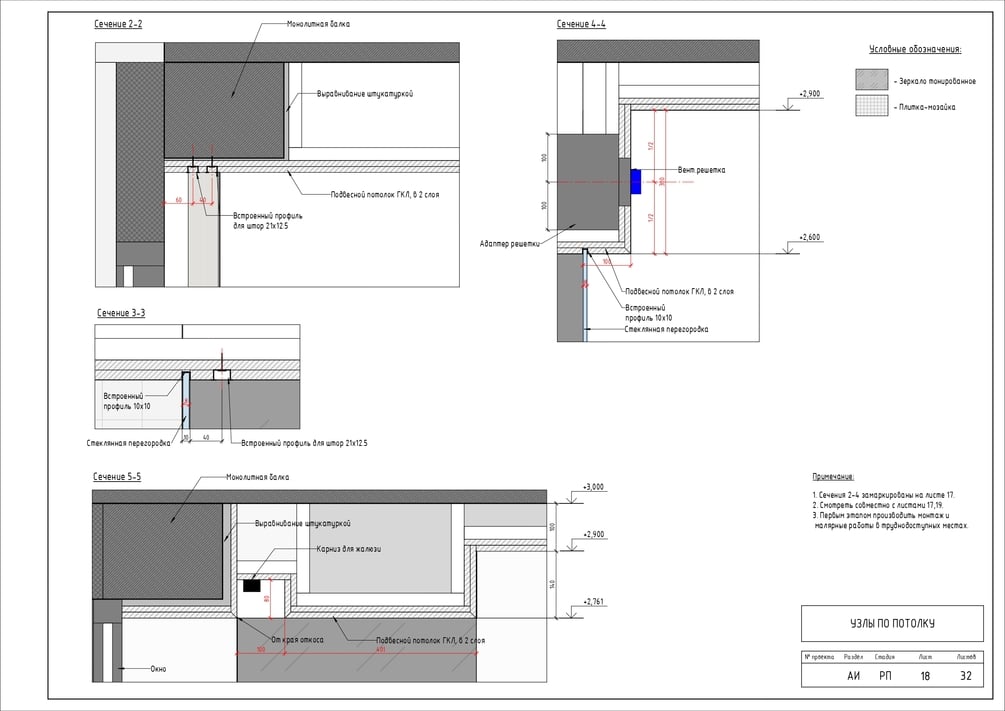

17.Ceiling Nodes

18.Shading Zones Plan

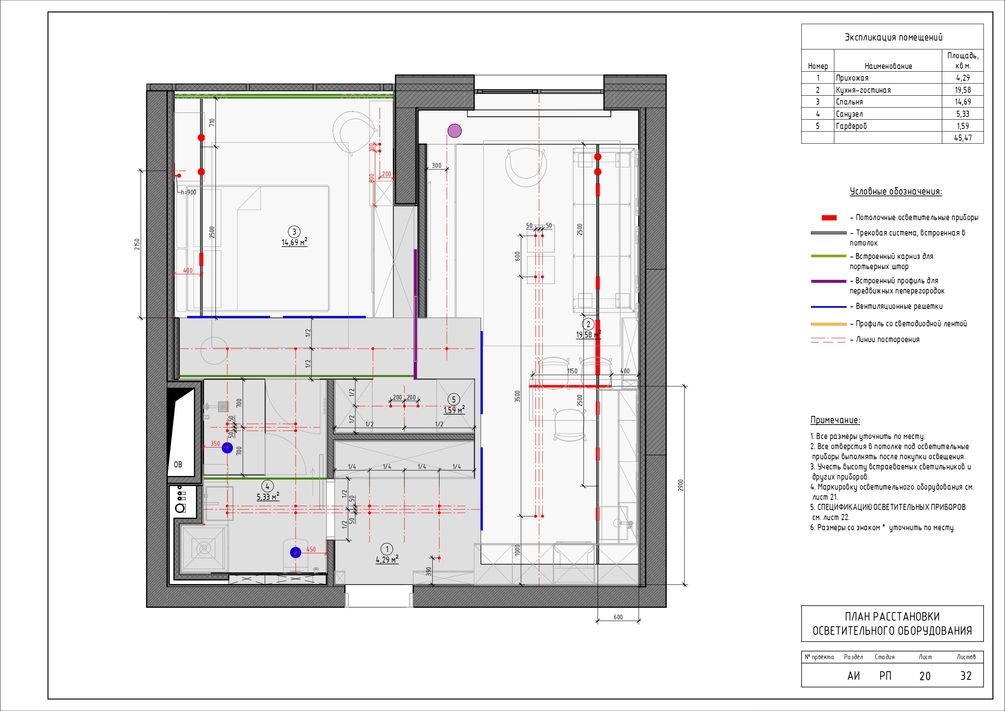

19.Lighting and Equipment Layout Plan

20.Lighting and Equipment Markup Plan

21.Lighting Equipment Specifications

22.Ventilation Plan

23.Light Control Plan

24.Socket Layout Plan

25.Wall Finishes Plan

27.Wall Elevations Plan

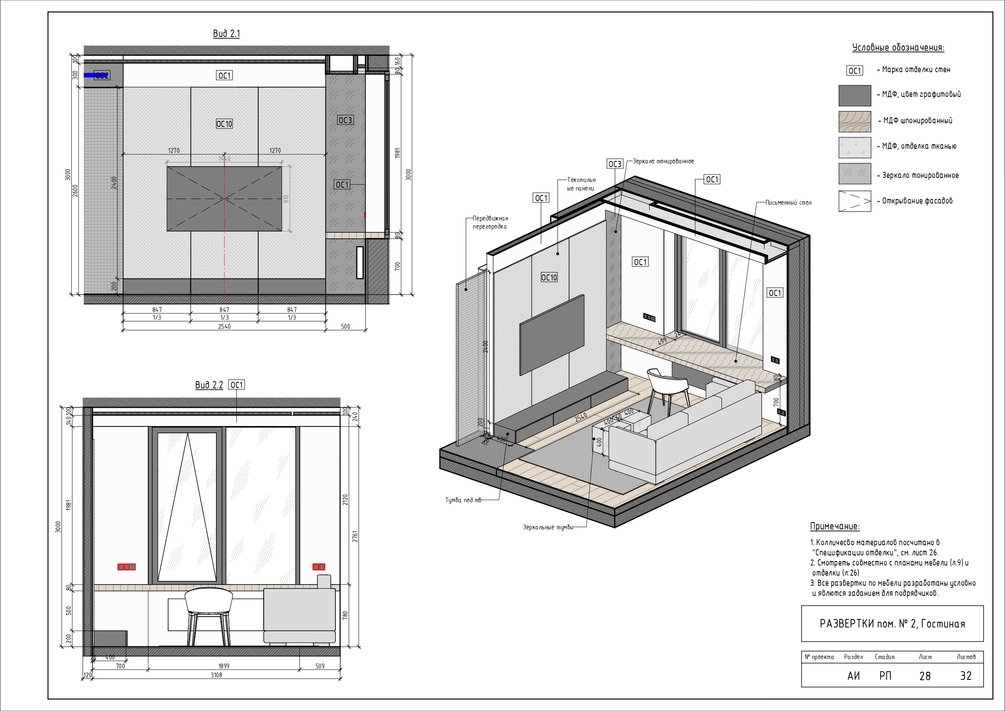

28.Elevation No. 2, Living Room

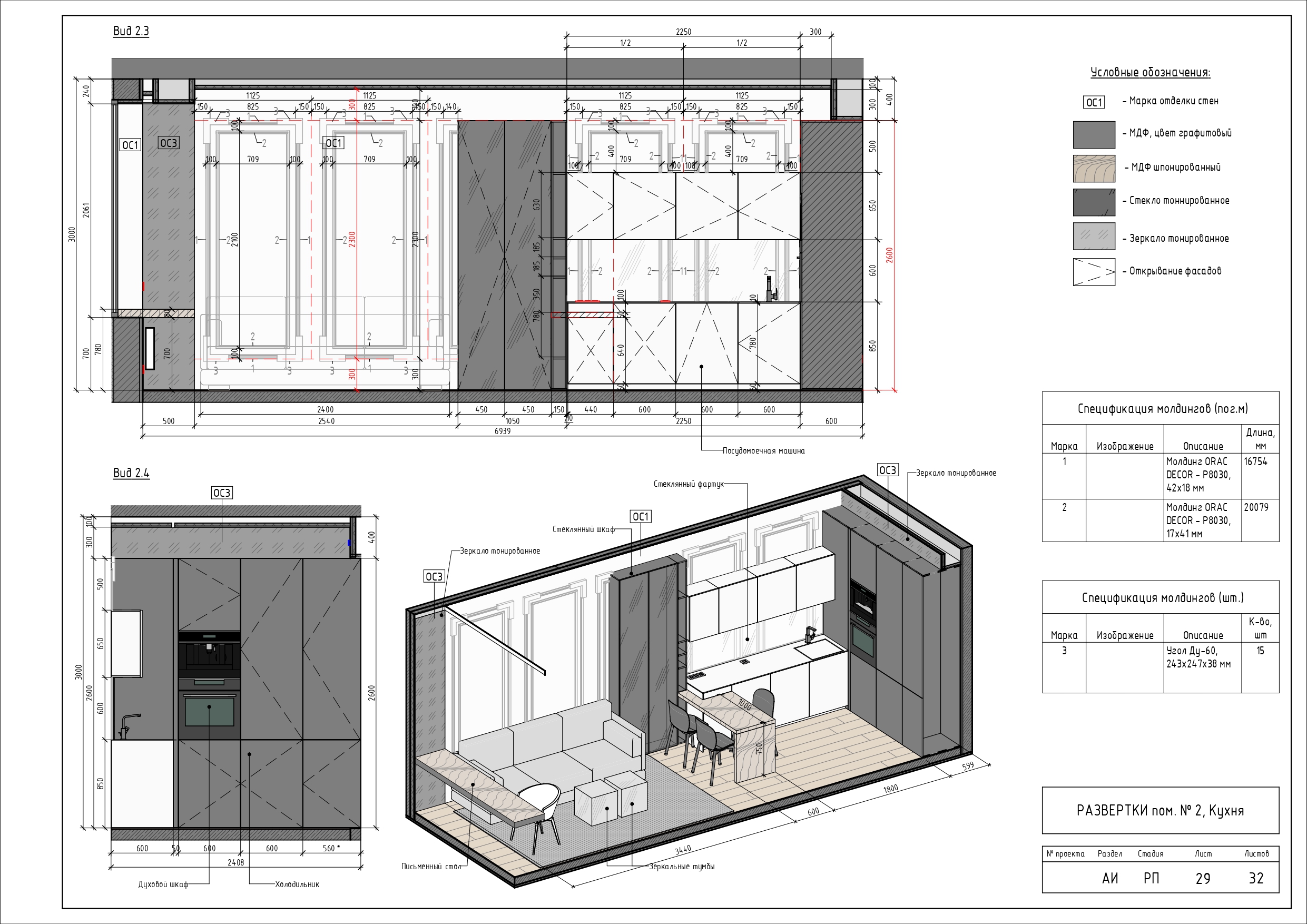

29.Elevation No. 2, Kitchen

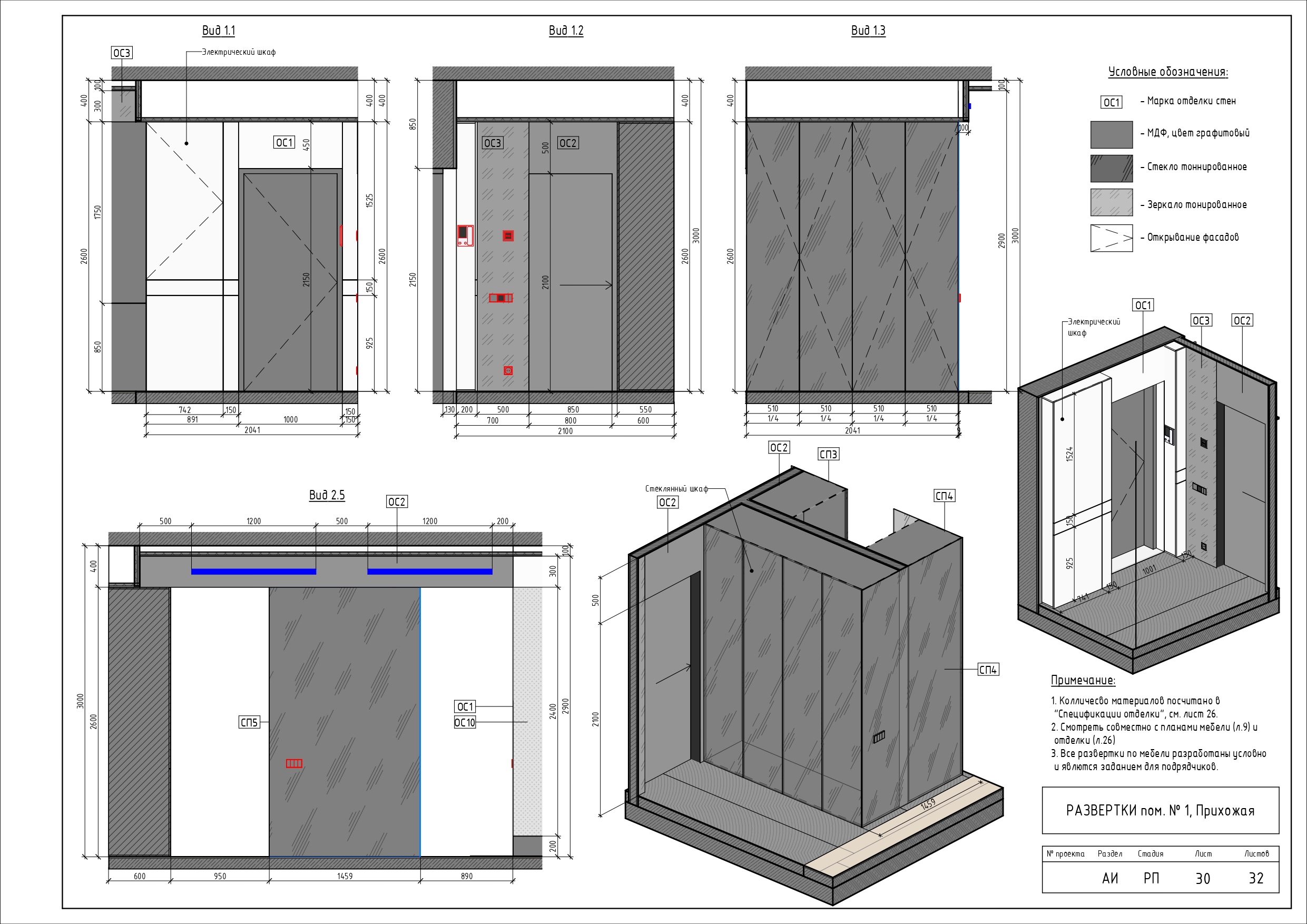

30.Elevation No. 1, Hallway

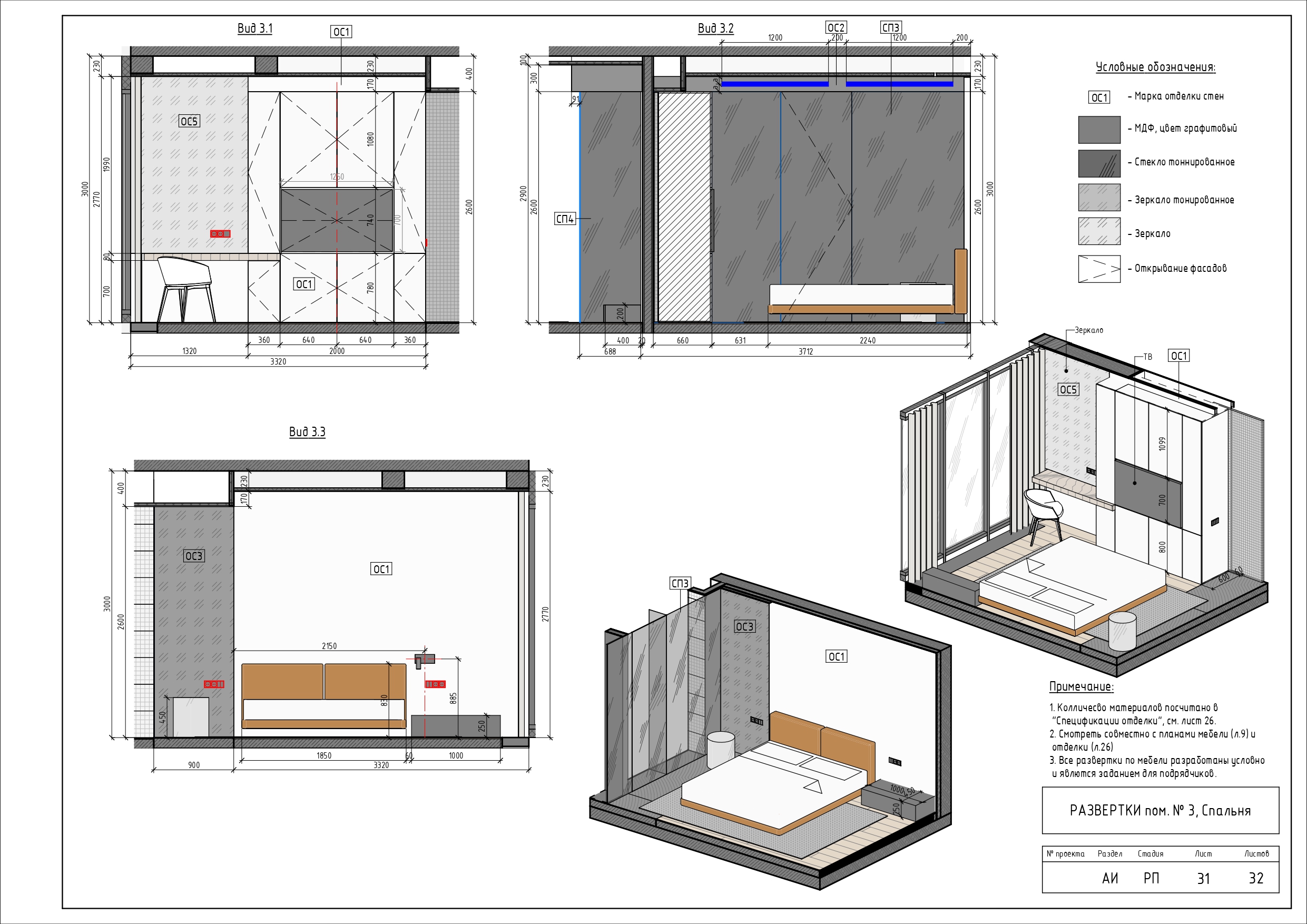

31.Elevation No. 3, Bedroom

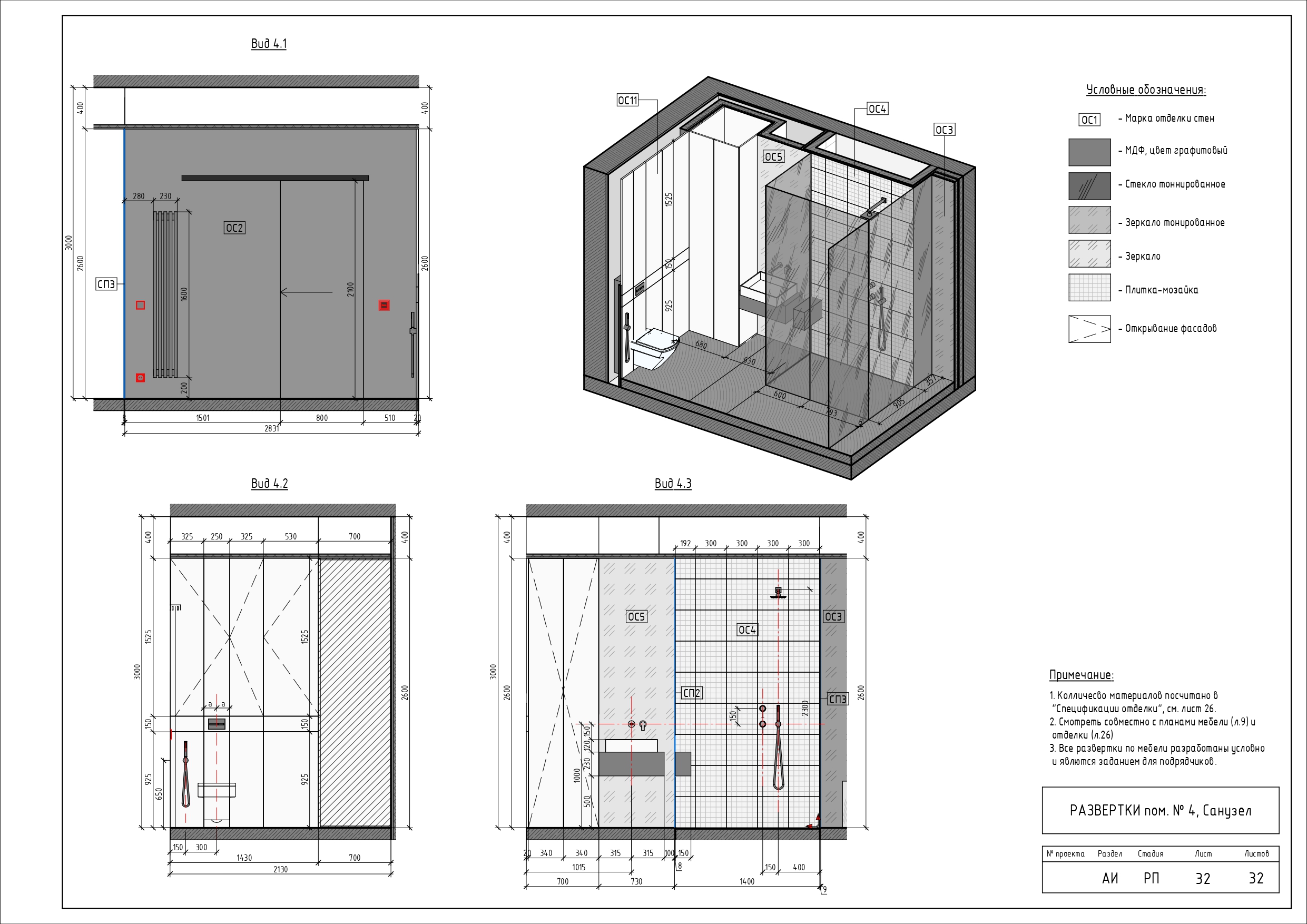

32.Elevation No. 4, Bathroom
